Vector VTR-1023 automatic Vicat X12 — twelve-station cement setting time and consistency testing per EN 196-3 and ASTM C191 with 0.1 mm accuracy, VicatMaster software, and high-throughput parallel operation.

VTR-1023

Automatic Vicat X12

12 mould · EN 196-3 · ASTM C191 · 0.1 mm · VicatMaster

Overview & Technical Specification Downloads Standards
Request a quote

Overview

The Vector VTR-1023 automatic Vicat X12 delivers simultaneous consistency and setting-time testing across twelve independent stations for high-throughput cement laboratories — a twelve-mould automatic Vicat line aligned with EN 196-3 and ASTM C191.

Tests up to twelve specimens in parallel to shorten total cycle time while recording the full setting timeline. A 300 g free-fall needle weight, adjustable drop height, and programmable penetration steps support repeatable results from routine QC through R&D.

0.1 mm penetration resolution, VicatMaster software for real-time monitoring, PDF reports, and a USB interface — penetration step intervals from 1–999 minutes.

At a glance

  • VTR-1023 — 12-mould Vicat X12
  • Automatic Vicat apparatus 12 mould
  • EN 196-3 & ASTM C191
  • 12× parallel stations
  • VicatMaster — monitoring & reports
  • CE marked laboratory equipment

Standards & conformity

Browse the standards library

Designed for cement setting-time and consistency testing under EN 196-3 and ASTM C191. Supplied as CE-marked laboratory equipment.

Vector VTR-1023 automatic Vicat apparatus 12 mould X12 — twelve-station setting-time tester

Industries & applications

Twelve-mould automatic Vicat for high-volume cement plants and commercial testing laboratories.

Cement manufacturing

Maximum shift throughput — twelve parallel set-time and consistency tests.

Commercial testing labs

Operator-independent needle control for accredited reporting.

R&D centres

Large datasets for binder and admixture development.

University & teaching

Hands-on EN 196-3 / ASTM C191 setting-time education.

Certification

Repeatable results for round-robin and conformity assessment.

Need six stations?

See the VTR-1022 Vicat X6 automatic apparatus for mid-volume laboratories.

Key features

Twelve stations, precise penetration, integrated water bath, and safe automatic needle handling.

12×

Parallel moulds

Test twelve specimens simultaneously in one automatic Vicat apparatus 12 mould line.

0.1 mm

Precision

Reliable penetration resolution for standard set thresholds.

196-3

Standards

EN 196-3, ASTM C191

SW

VicatMaster

PDF reports and USB data export.

H₂O

Water bath

Stable temperature across twelve chambers.

CE

Safety

Sensors, contactless drop, automatic needle cleaning.

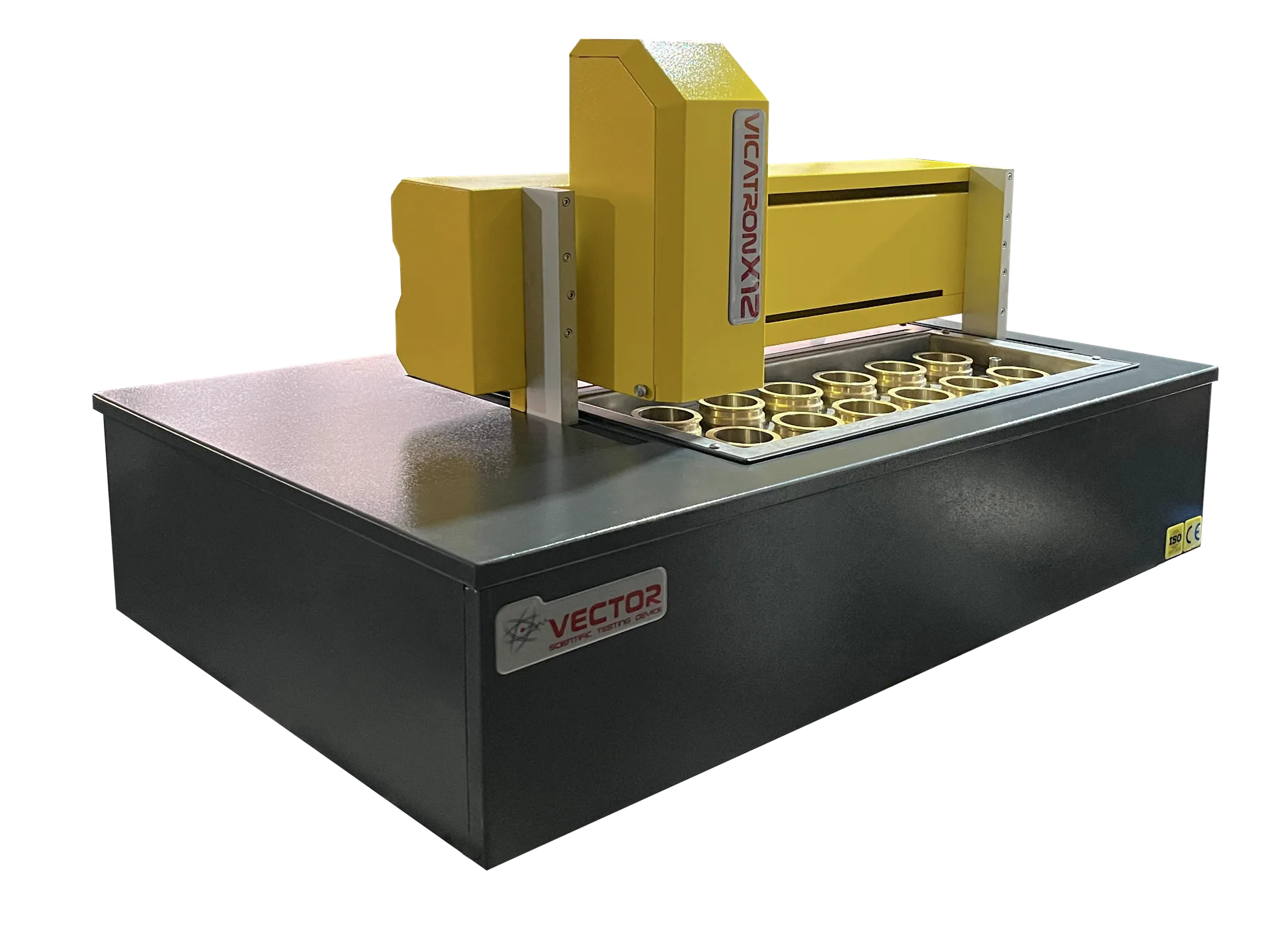

Vector VTR-1023 automatic Vicat X12 — control unit

VicatMaster software

Live set curves on twelve stations, false final-set capture, and auditable PDF reports.

  • Real-time — penetration and temperature on all moulds
  • 1–999 min — programmable steps
  • USB — data and report archive

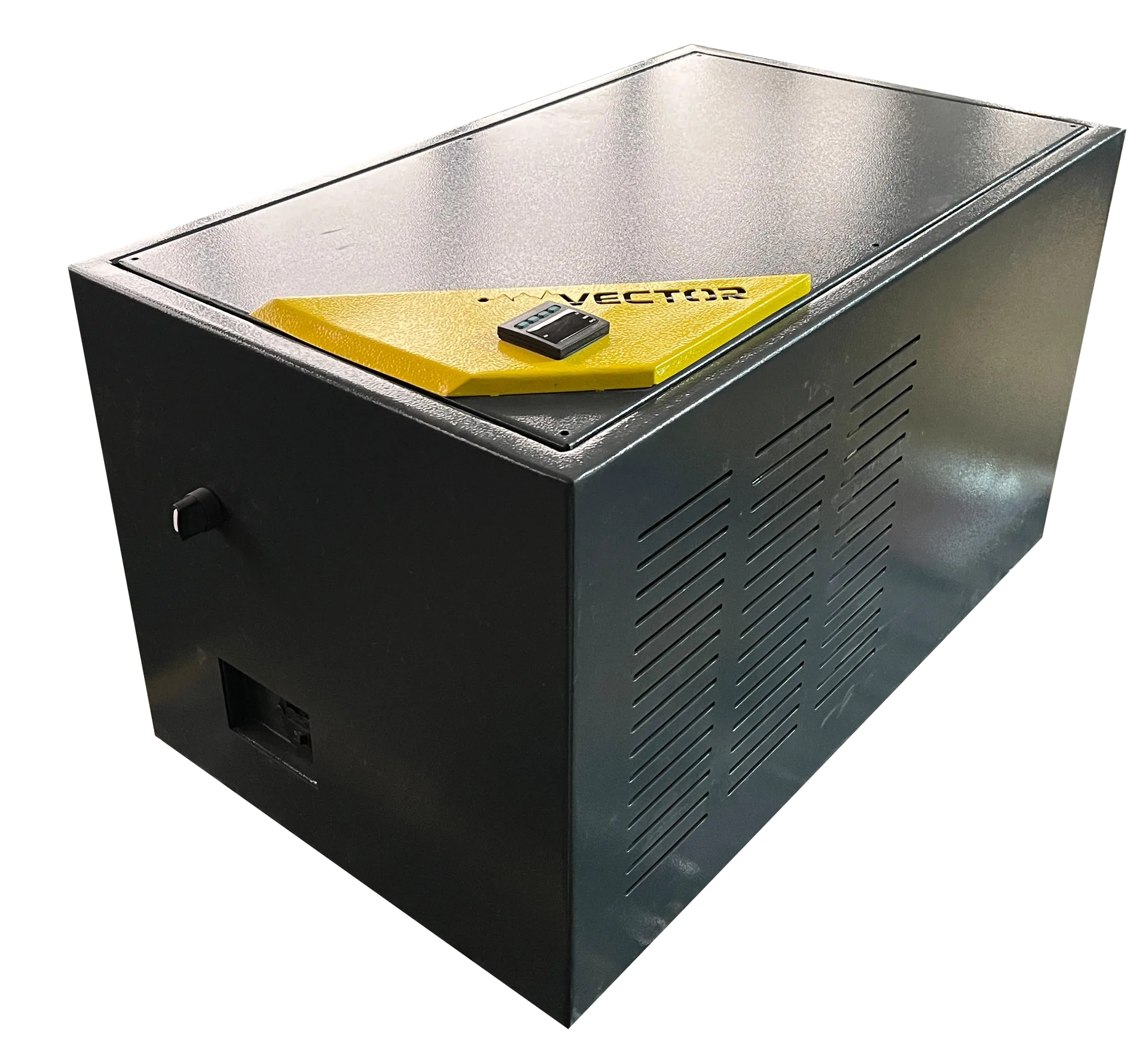

Vector VTR-1023 — integrated water bath

Dry & underwater testing

Integrated bath and circulation keep twelve chambers at a stable temperature.

  • Temperature — logged every impact
  • 12 — parallel comparable conditions

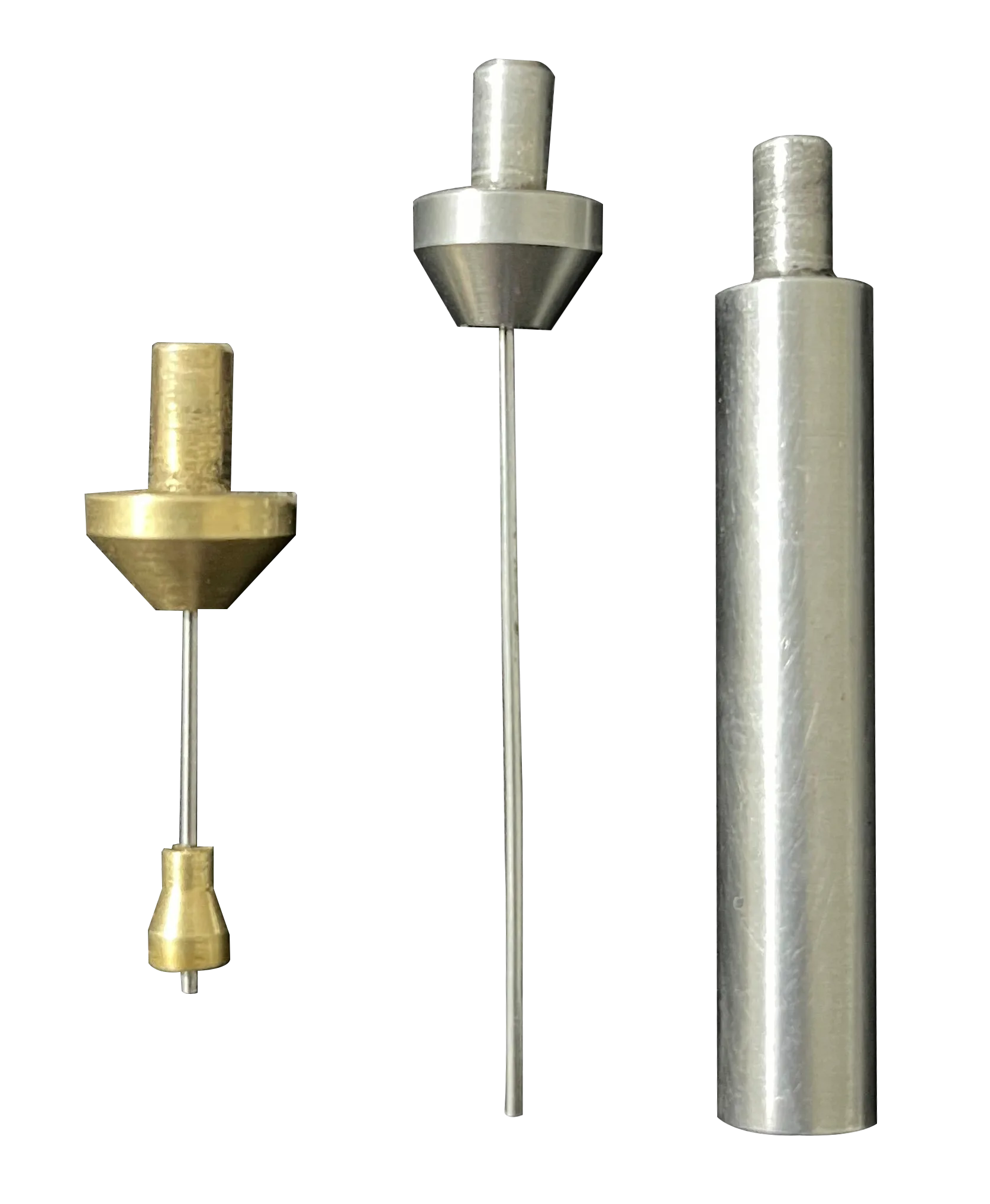

Vector Vicat needle set and accessories

Needle set & maintenance

Standards-aligned needle tips, automatic cleaning, and spare-part support for long campaigns.

  • 300 g — free-fall weight
  • Cleaning — automatic needle maintenance cycle

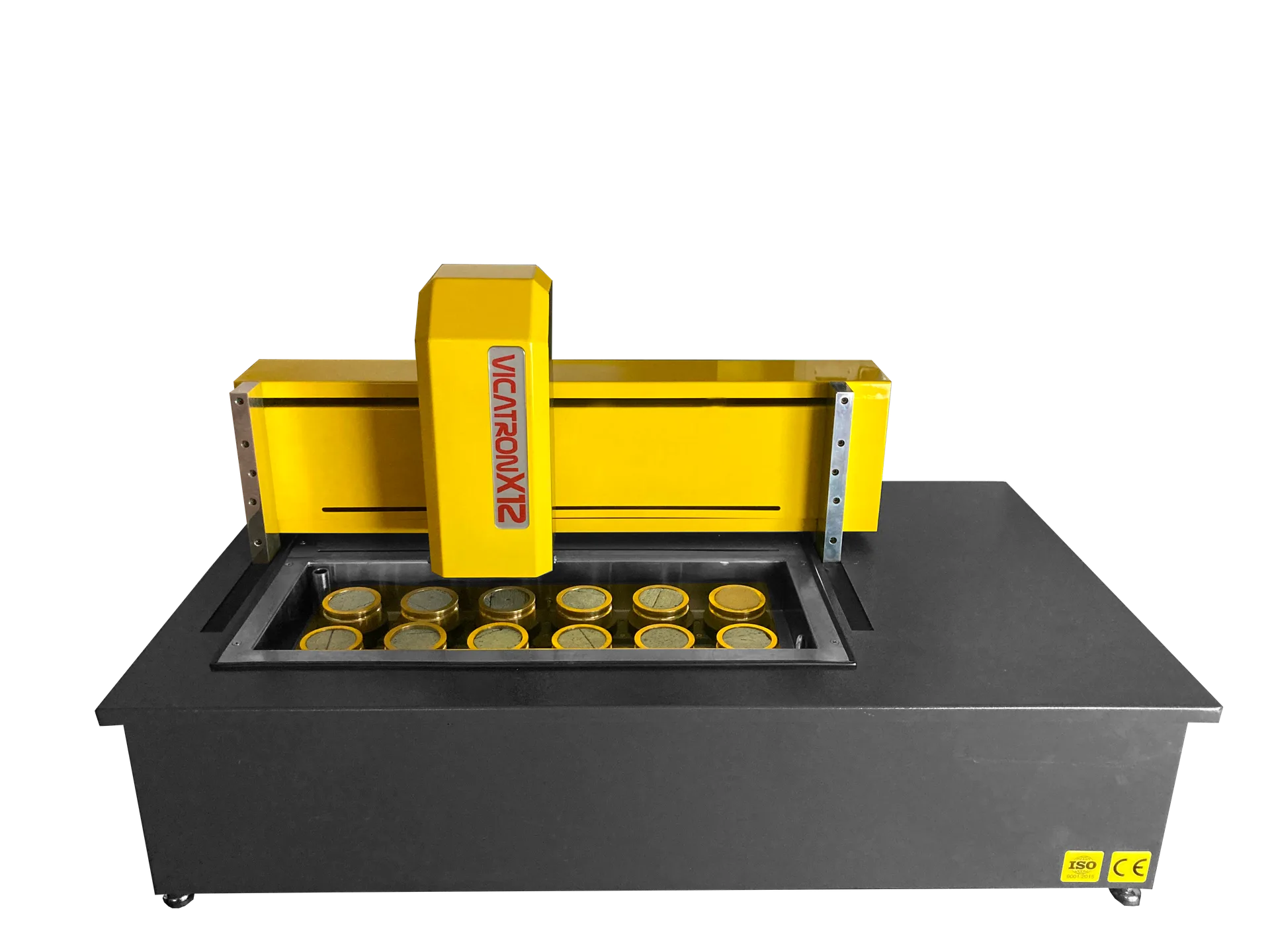

Vector VTR-1023 Vicat X12 — twelve mould stations

Why the Vicat X12

The automatic Vicat apparatus 12 mould configuration for cement QC lines that demand maximum throughput — twice the station count of the X6.

  • Vicatron X12 — compact multi-station layout
  • Service — Vector warranty and technical support

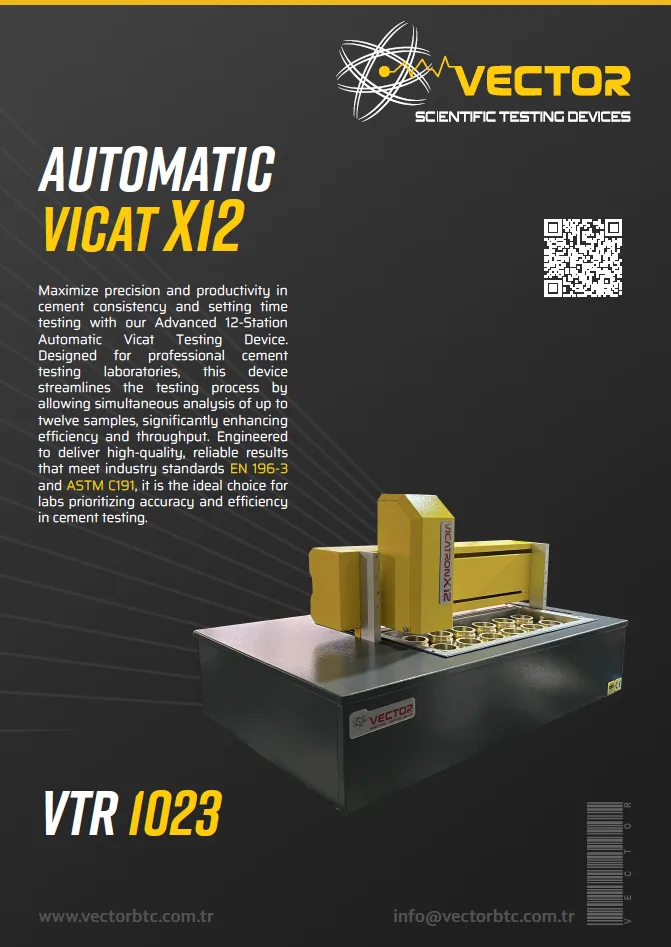

Vector VTR-1023 automatic Vicat X12 brochure

Downloads

VTR-1023 automatic Vicat X12 product brochure.

Brochure (PDF)

Vector Automatic Vicat X12

Technical overview

Product code
VTR-1023
Model
Vicat X12
Stations
12 independent mould positions
Standards
EN 196-3, ASTM C191
Accuracy
0.1 mm
Software
VicatMaster
