Cement manufacturing
Routine plant QC on mortar prisms — repeatable jolt compaction before flexural and compressive strength tests on production and development mixes.

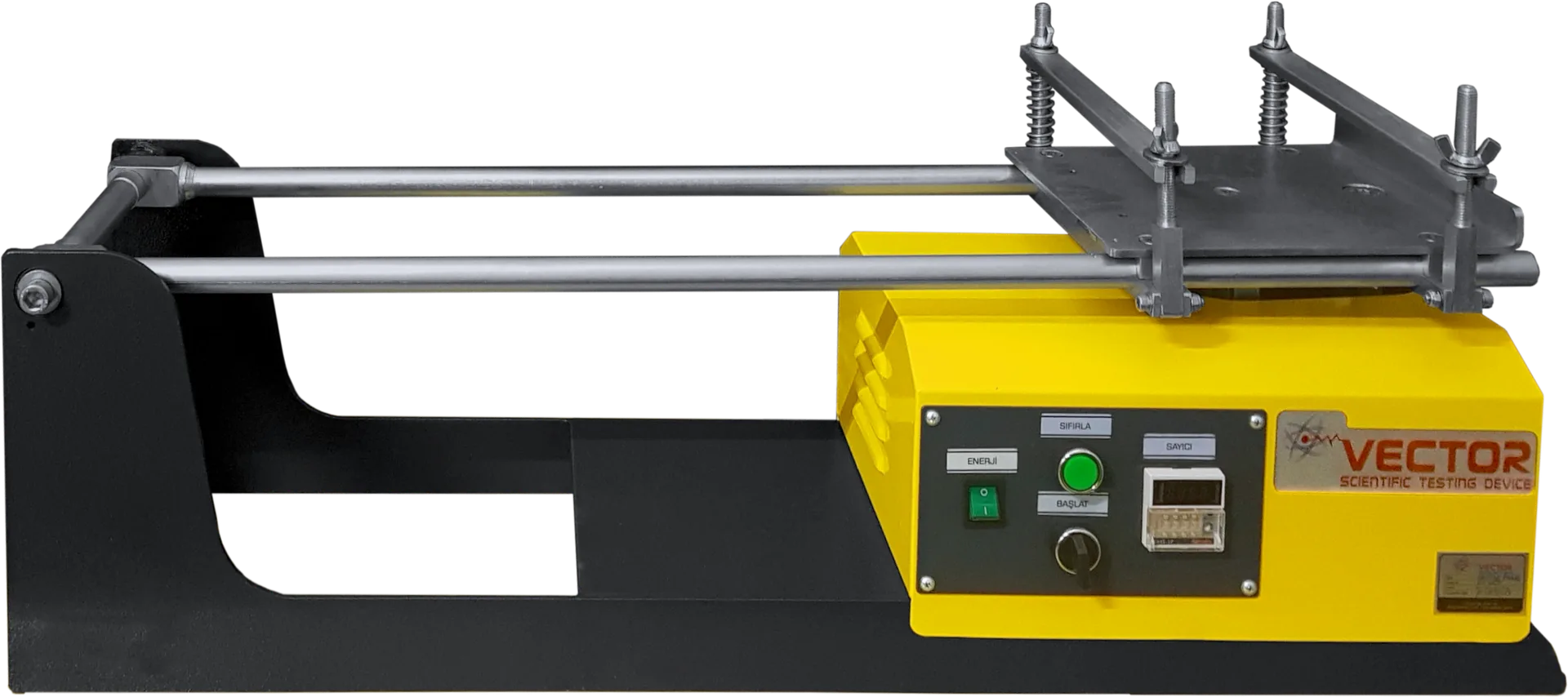

Vector VTR-1024 jolting table — precision compaction of cement mortar prisms for flexural and compressive strength prep per EN 196-1, ISO 679, and related EN cement methods; fixed stroke and frequency options with mould clamps.
VTR-1024
Jolting Table
EN 196-1 · ISO 679 · mortar prism compaction · fixed stroke
Overview

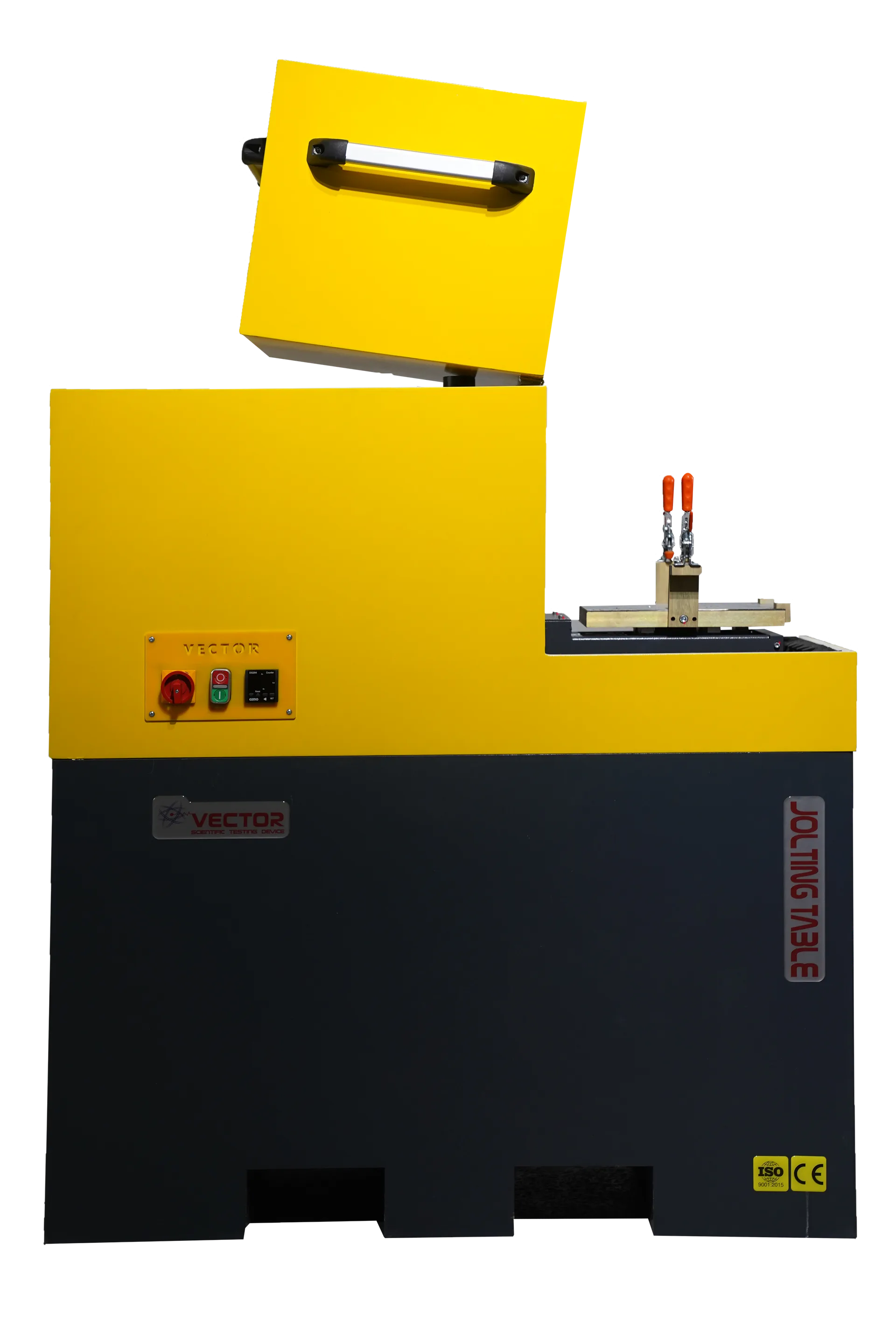

The Vector VTR-1024 jolting table compacts cement mortar prisms with uniform, repeatable jolt energy — reducing voids and edge defects before curing and flexural or compressive strength testing of cements, mortars, and other binding materials.
Engineered for laboratories that follow EN 196-1, ISO 679, EN 413-2, EN 459-2, and EN 13454-2, the VTR-1024 delivers controlled stroke and frequency so each mould layer receives the same compaction. A sound-dampened enclosure, rigid base, and front-panel controls with emergency stop support safe, repeatable operation on busy cement QC lines.
Interchangeable prism mould clamp bars adapt to regional mould standards. The machine sits naturally beside flow tables, mixers, curing cabinets, and compression frames — Vector configures stroke, frequency, and fixtures for your referenced methods and internal SOPs.
At a glance
- VTR-1024 — cement mortar prism compaction
- Controlled jolt — fixed stroke and frequency options
- Mould clamps — regional prism mould interfaces
- Sound-dampened enclosure for laboratory use
- EN 196-1, ISO 679, and related EN cement methods
- CE machinery conformity
Standards & conformity
Browse the standards library
Designed for workflows referencing EN 196-1, ISO 679, EN 413-2, EN 459-2, and EN 13454-2. See EN 196-1 and ISO 679 for jolt mass, stroke, 60-jolt layers, curing cabinet RH, and test-press loading rates. Supplied as CE-marked machinery.
Industries & applications
From cement plant QC to mortar and binder R&D, the jolting table delivers uniform prism compaction before curing cabinets and flexural or compressive strength frames.
Ready-mix & mortar
Construction materials laboratories preparing prisms for EN 196-1-style strength programmes — consistent layer compaction across shifts and operators.
Building materials R&D
Binder, admixture, and aggregate trials where prism void structure must stay comparable so strength trends reflect formulation changes, not hand compaction.
University & teaching
Physical testing courses that link specimen preparation, standard jolt protocols, and later flexural or compressive strength measurement.
Multi-method cement labs
Integrated lines with flow tables, Vicat frames, and presses — the VTR-1024 closes the gap between fresh mortar workability checks and cured prism testing.
Need a method-matched setup?
Vector application support helps align stroke, frequency, clamp bars, and accessories with EN 196-1, ISO 679, and your internal SOPs.
Key features
Built for repeatable prism compaction, operator-safe jolting action, and stable performance in cement and mortar QC laboratories.
Standard prism prep
Controlled jolt action supports EN 196-1, ISO 679, and related mortar prism preparation where stroke and frequency must stay consistent.
Uniform compaction energy
Fixed stroke and frequency options deliver the same energy into each mould layer — fewer voids and edge defects than hand rodding alone.
Mould clamp bars
Interchangeable clamp interfaces secure regional prism moulds during jolting — quick changeover between mould sizes and standards.
Front-panel operation
Start/stop, digital counter, and emergency stop support safe shared-lab use beside mixers, curing cabinets, and strength frames.

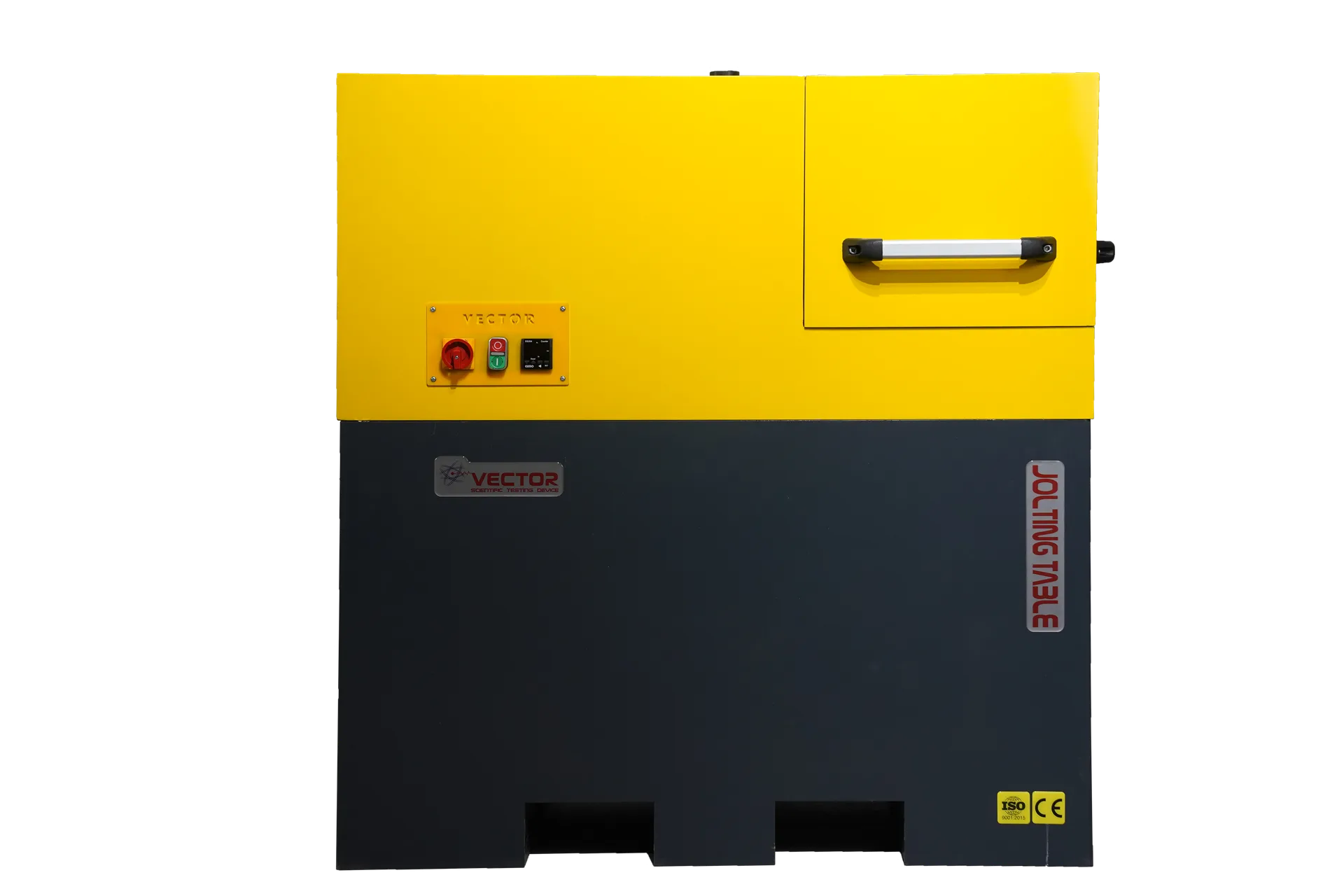

Sound-dampened enclosure
Lined enclosure reduces acoustic impact in open laboratory bays while keeping mould access clear for filling and cleaning.
Laboratory machinery
CE-marked equipment with guarded motion and rigid base for long-term service on industrial floors.
Controlled jolt action & operator interface
Prism strength depends on how each layer is compacted. The VTR-1024 applies uniform jolt energy so flexural and compressive results reflect binder quality — not inconsistent hand compaction between operators.
Stroke & frequency — configuration matched to EN 196-1, ISO 679, and your internal SOPs.
Front-panel control — start/stop, digital counter, and emergency stop for safe shared-lab use.
Mould clamps — secure regional prism moulds during jolting with quick fixture changeover.
Downloads
Product brochure for the Vector VTR-1024 jolting table — specifications, controls, and typical cement mortar prism laboratory applications.
Brochure (PDF)Vector Jolting Table series
Technical overview
Product code
VTR-1024
Application
Cement mortar prism compaction
Table motion
Controlled jolt (stroke and frequency per configuration)
Mould interface
Prism mould clamp bars
Typical methods
EN 196-1, ISO 679, EN 413-2, EN 459-2, EN 13454-2
Typical applications
Cement QC, mortar prism prep, building materials R&D
Conformity
CE-marked machinery
Need help choosing?
Our applications team can match equipment to your standards and samples.
Contact our team
